Integrated Substation

1. Compact and Space-Saving Design

Box-type substations are compact, making them ideal for installations where space is limited. Their modular structure combines essential components in a single enclosure, significantly reducing the land area required compared to traditional substations.

• Ideal for urban areas and industrial zones.
• Easy integration into tight spaces like basements or rooftops.

2. Ease of Installation and Mobility

Pre-assembled at the factory, box-type substations arrive at the site ready for installation. This reduces installation time and labor costs. They are also easy to relocate, making them suitable for temporary setups.

• Plug-and-play design ensures quick commissioning.

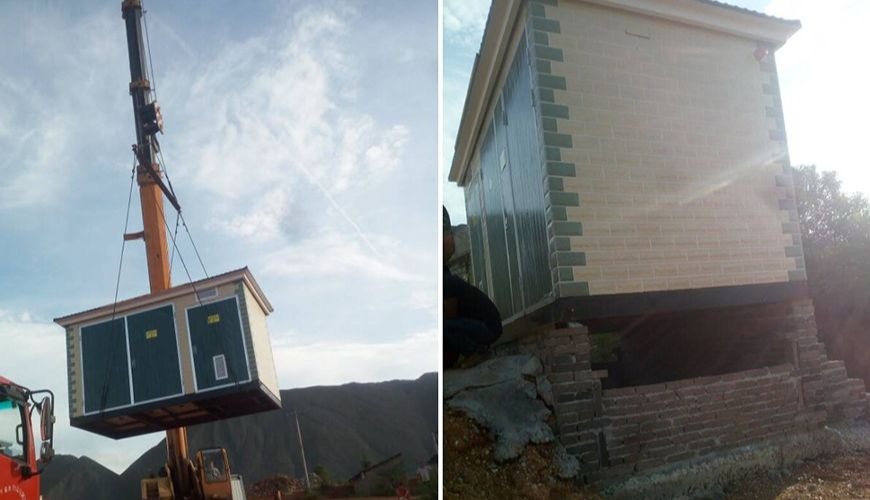

• Can be transported via truck or crane to new locations.

3. Enhanced Safety Features

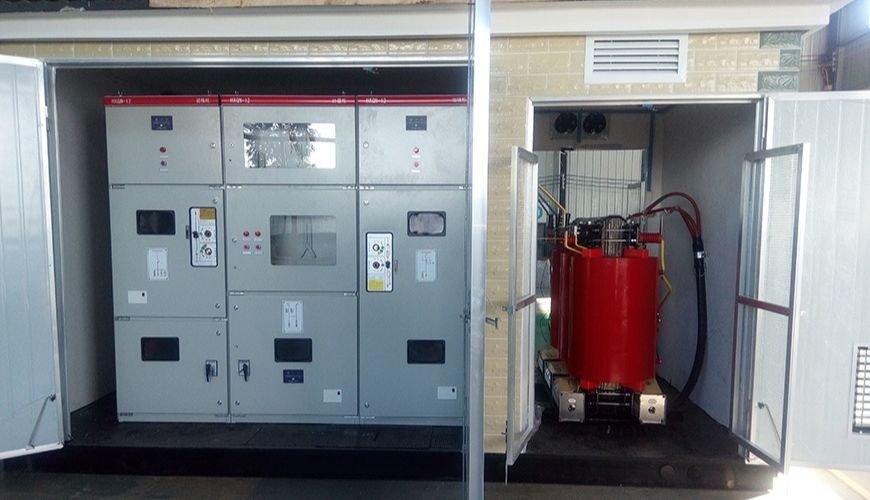

The enclosure of a box-type substation protects the equipment and personnel from external risks like weather, dust, and accidental contact. Safety enhancements include:

• Segregated compartments to prevent internal faults.
• Fire-resistant and weatherproof enclosures.
• Reduced exposure to high-voltage components.

4. Low Maintenance Requirements

These substations are designed to operate efficiently with minimal maintenance. The enclosed design shields internal components from environmental factors, reducing wear and tear.

• Maintenance intervals are extended compared to open substations.
• Less susceptibility to dirt, debris, and weather-related damage.

5. Cost-Effectiveness

Box-type substations are cost-effective due to their standardized and modular design. Benefits include:

• Lower upfront costs compared to custom-built substations.
• Reduced site preparation and civil works.
• Economical for short-term and long-term power needs.

6. Customizable and Scalable Options

Manufacturers offer box-type substations in various sizes and configurations to meet specific power distribution requirements.

• Supports voltage levels from low to medium ranges.
• Easy to upgrade with additional modules or larger capacities.

7. Environmental Protection

The enclosed nature of box-type substations minimizes noise pollution and leakage of hazardous materials, making them environmentally friendly.

• Ideal for environmentally sensitive areas.
• Low noise levels compared to traditional substations.

Conclusion

Box-type substations offer numerous advantages, including compact design, ease of installation, enhanced safety, and cost-effectiveness. Their versatility and low-maintenance requirements make them a preferred choice for diverse applications, from urban power distribution to industrial facilities.

By leveraging these benefits, utilities and industries can achieve reliable and efficient power delivery with minimal environmental impact.
