In today’s fast-paced world, the demand for reliable and efficient power distribution systems is higher than ever. Whether it’s for industrial, commercial, or residential applications, the need for transformers that can deliver consistent performance while minimizing energy loss is critical. Among the various types of transformers available, dry type cast resin transformers have emerged as a leading solution, offering a perfect blend of durability, safety, and efficiency.
Insulation class of dry type transformers
Dry-type transformers are widely used in various applications due to their safety, reliability, and environmental benefits. They do not use liquid for cooling and insulation, making them suitable for indoor installations and environmentally sensitive areas. The insulation system in dry-type transformers is critical for their performance and longevity. The insulation classes are defined by the maximum allowable temperature rise and the type of materials used. Here are the common insulation classes for dry-type transformers:
Maximum Allowable Temperature Rise: 55°C (above ambient temperature of 40°C)
Total Temperature: 105°C
Materials: Typically includes materials like cotton, silk, paper, and other organic materials impregnated or immersed in a dielectric liquid.
Applications: Rarely used in modern dry-type transformers due to lower thermal limits.
Maximum Allowable Temperature Rise: 80°C (above ambient temperature of 40°C)
Total Temperature: 130°C
Materials: Includes materials like mica, glass fiber, asbestos, and other inorganic materials with suitable binders.
Applications: Commonly used in older dry-type transformers, but less common in modern designs.
Maximum Allowable Temperature Rise: 100°C (above ambient temperature of 40°C)
Total Temperature: 155°C
Materials: Typically includes materials like mica, glass fiber, and other inorganic materials with high-temperature binders.
Applications: Widely used in modern dry-type transformers due to their higher thermal limits and reliability.
Maximum Allowable Temperature Rise: 125°C (above ambient temperature of 40°C)
Total Temperature: 180°C
Materials: Includes materials like silicone rubber, glass fiber, and other high-temperature materials.
Applications: Used in applications where higher thermal limits are required, such as in harsh environments or where overload conditions are expected.
Maximum Allowable Temperature Rise: Above 125°C (above ambient temperature of 40°C)
Total Temperature: Above 180°C
Materials: Includes materials like Teflon, ceramic, and other high-temperature materials.
Applications: Used in specialized applications where extremely high temperatures are encountered.
Ambient Temperature: The ambient temperature is typically considered to be 40°C for defining the temperature rise.
Temperature Rise: This is the increase in temperature of the transformer windings above the ambient temperature.
Total Temperature: This is the sum of the ambient temperature and the temperature rise, which should not exceed the insulation class limit.

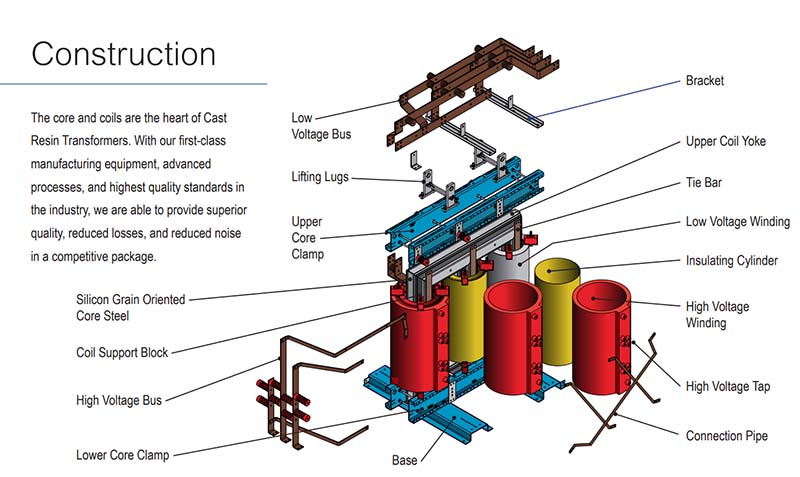

Cast resin transformers offer numerous benefits that set them apart from conventional transformers. Here are some of the most notable advantages:
Enhanced Safety: Since they do not use flammable oils, cast resin transformers significantly reduce the risk of fire hazards. This makes them suitable for installation in densely populated areas, such as hospitals, schools, and shopping malls.
Eco-Friendly Design: The absence of oil eliminates the risk of soil and water contamination, making cast resin transformers an environmentally responsible choice.
Low Maintenance: With no oil to monitor or replace, these transformers require minimal maintenance, reducing operational costs over time.
Durability: The epoxy resin provides robust protection against moisture, dust, and chemicals, ensuring a long service life even in harsh environments.
Energy Efficiency: Cast resin transformers are designed to minimize energy losses, contributing to lower electricity bills and a reduced carbon footprint.
Cast resin transformers are versatile and can be used in a variety of settings. Some of the most common applications include:
Industrial Facilities: These transformers are ideal for factories and manufacturing plants, where they can handle heavy loads and operate reliably in demanding conditions.
Commercial Buildings: Shopping malls, office complexes, and hotels benefit from the safety and efficiency of cast resin transformers.
Renewable Energy Systems: They are widely used in solar and wind power installations, where their durability and low maintenance requirements are highly valued.
Urban Infrastructure: Cast resin transformers are often installed in urban areas due to their compact design and reduced fire risk.

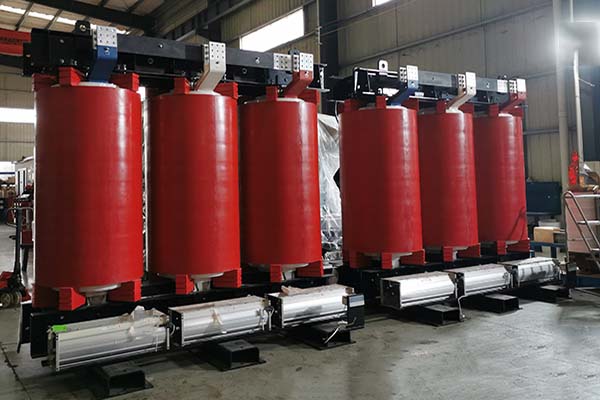

Our cast resin transformers are designed and manufactured in accordance with the main international standards: CEI EN 50541-1 / IEC 60076-11 / IEC 60076-1 / IEC 60076-2 / IEC 60076-5 / IEC 60076-10 / HD538.1 S1 / HD538.2 S1 / CEI 14-12 and the new Ecodesign legislation: Directive No 548/2014
Measurement of winding resistance
When choosing between cast resin and oil-filled transformers, it’s essential to understand the key differences:
Safety: Cast resin transformers are inherently safer due to their non-flammable design, while oil-filled transformers pose a higher risk of fire and environmental contamination.
Maintenance: Oil-filled transformers require regular oil testing and replacement, whereas cast resin transformers are virtually maintenance-free.
Environmental Impact: Cast resin transformers are more eco-friendly, as they do not use hazardous oils.
Installation Flexibility: Cast resin transformers can be installed indoors or outdoors, while oil-filled transformers are typically limited to outdoor use.
Advanced designs include features to withstand and mitigate the effects of short circuits, ensuring safety during electrical faults.
Dry-type transformers are safe for indoor installation due to their non-flammable nature and lack of hazardous materials.
The field of cast resin transformers is continually evolving, with new advancements enhancing their performance and reliability. Some of the latest innovations include:
Advanced Resin Formulations: New epoxy resins with improved thermal and mechanical properties are being developed to further enhance transformer durability.
Smart Monitoring Systems: Integration of IoT-enabled sensors allows for real-time monitoring of transformer performance, enabling predictive maintenance and reducing downtime.
Compact Designs: Manufacturers are creating more compact and lightweight transformers, making them easier to install in space-constrained environments.
Selecting the appropriate cast resin transformer depends on several factors, including:
Load Requirements: Determine the power capacity needed for your application.
Environmental Conditions: Consider factors such as temperature, humidity, and exposure to corrosive substances.
Space Constraints: Evaluate the available installation space to ensure the transformer fits comfortably.
Budget: While cast resin transformers may have a higher upfront cost, their long-term savings in maintenance and energy efficiency often justify the investment.
As the world moves toward greener and more sustainable energy solutions, cast resin transformers are poised to play a pivotal role. Their eco-friendly design, combined with advancements in technology, makes them an ideal choice for modern power distribution systems. With increasing adoption in renewable energy projects and urban infrastructure, cast resin transformers are set to become the standard for reliable and efficient power distribution.
Cast resin transformers represent a significant leap forward in transformer technology, offering unparalleled safety, efficiency, and durability. Their ability to operate in diverse environments with minimal maintenance makes them a cost-effective and sustainable solution for a wide range of applications. As industries and communities continue to prioritize safety and environmental responsibility, cast resin transformers are emerging as the go-to choice for power distribution needs. By investing in these innovative transformers, you can ensure a reliable and efficient power supply while contributing to a greener future.
Whether you’re upgrading an existing system or designing a new one, cast resin transformers provide the performance and peace of mind you need. Explore the possibilities today and discover how these transformers can transform your power distribution network.
