Liquid immersed transformers, how do they work?

Liquid immersed transformers, or liquid-insulated transformers, are established as the most economical, safe, and sustainable technology for the electrical network

Liquid filled Transformers:  Key Element in Modern Electrical Networks

In the ever-evolving landscape of electrical engineering, power transformers play a critical role in ensuring the smooth and efficient operation of power networks. Among the various transformer types available, liquid immersed transformers have emerged as one of the most reliable, cost-effective, and sustainable solutions.

Liquid Immersed Transformers: How Do They Work?

Liquid immersed transformers, often referred to as oil-filled or submerged transformers, are essential components in the electrical grid, offering safe and efficient energy conversion. The fundamental principle behind these transformers lies in their dielectric liquid insulation, which surrounds the internal components, primarily the core and windings.

The primary function of the dielectric liquid—often oil, though ester or silicone-based liquids may also be used—is to provide electrical insulation, thermal management, and environmental protection. This liquid acts as a separator between the core and windings, preventing electrical short circuits and ensuring stable operation even under extreme load conditions.

Key Functions of the Dielectric Liquid:

1. Electrical Insulation: The liquid helps to insulate the transformer’s core and windings, preventing unwanted electrical currents and reducing the risk of short circuits.
2. Thermal Insulation: By acting as a coolant, the dielectric liquid efficiently absorbs and dissipates the heat generated during transformer operation, helping to prevent overheating and ensuring optimal performance.
3. Environmental Protection: The dielectric liquid also provides environmental insulation, shielding the transformer’s internal components from moisture, dust, and other contaminants that could compromise its functionality.

These features make liquid immersed transformers ideal for environments that demand high reliability and durability, such as industrial plants, power substations, and remote locations.

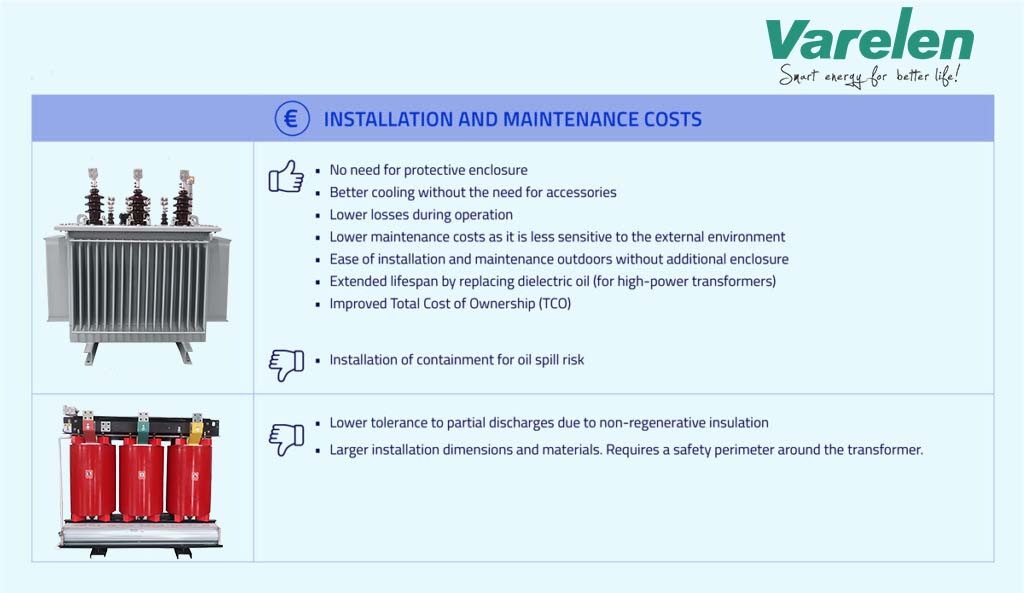

Liquid Immersed Transformers and Installation & Maintenance Costs

When it comes to installation and maintenance, liquid immersed transformers offer a distinct advantage over their dry-type counterparts. These transformers are designed to operate with minimal intervention, reducing both upfront costs and long-term maintenance requirements.

One of the most significant cost-saving benefits of liquid immersed transformers is that they do not require additional protective enclosures or cooling systems, as the dielectric liquid itself performs both insulating and cooling functions. This feature reduces the initial installation costs, which can be substantial for dry-type transformers that require special enclosures and external cooling units.

Furthermore, liquid immersed transformers are easier and less expensive to maintain over their lifespan. The dielectric fluid’s ability to maintain low insulating losses during service translates into fewer maintenance interventions. In high-power models, the oil may need to be replaced periodically, but overall, maintenance costs are significantly lower compared to dry-type models, which may require more frequent servicing.

Main Advantages of Submerged Transformers

Liquid immersed transformers offer a variety of advantages that make them a preferred choice for many applications. These benefits extend beyond cost-effectiveness and operational efficiency to include safety, environmental impact, and longevity.

1. Safety

Safety is a paramount concern when working with electrical equipment, and liquid immersed transformers excel in this area. Their insulating liquid offers superior protection against electrical faults and short circuits, reducing the likelihood of accidents or fires. Additionally, the oil used in these transformers has a high flash point, which minimizes the risk of ignition even under high-voltage conditions.

2. High Load Capacity

Oil-insulated transformers can handle higher electrical loads more efficiently than dry-type transformers. They have greater tolerance to overvoltage and can maintain stable operation even during transient voltage spikes. This makes them ideal for environments where power demands fluctuate or where equipment might experience periodic surges.

3. Durability

Due to their superior thermal management properties, liquid immersed transformers have a longer operational lifespan. They are better equipped to handle thermal stress and overloads, reducing the likelihood of premature failure and extending the overall life of the transformer.

4. Lower Maintenance Costs

As previously mentioned, the oil’s ability to cool and insulate the transformer reduces the frequency of maintenance interventions. With proper oil monitoring and occasional replacement, these transformers can continue to operate efficiently for decades with minimal downtime.

5. Environmental Impact

Liquid immersed transformers are designed to be more environmentally friendly, particularly in comparison to dry-type transformers. Their dielectric oil has a lower environmental impact, especially when it comes to energy consumption and carbon footprint. Additionally, liquid immersed transformers are more resistant to environmental elements such as moisture, which can significantly extend their service life in harsh conditions.

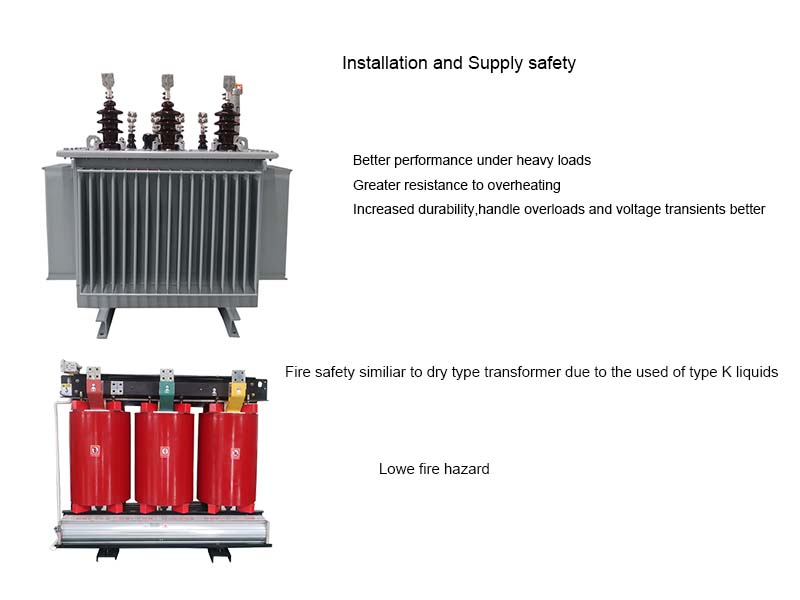

Dielectric Transformers and Safety Criteria

The safety of dielectric transformers is one of the key factors that make them a top choice for industrial and residential electrical systems. Liquid immersed transformers meet stringent safety standards by incorporating a series of built-in features that prevent electrical faults and enhance reliability.

Key Safety Criteria:

1. Overload Resistance: Liquid immersed transformers are designed to operate safely under high electrical loads. The oil insulation allows these transformers to tolerate higher temperatures and voltage surges without risking failure or safety hazards.
2. Fire Resistance: The dielectric oil used in these transformers has a high flashpoint, which reduces the risk of ignition under extreme electrical stress.
3. Robust Construction: The external tank of liquid immersed transformers is typically made of durable materials such as steel, which further protects the transformer from physical damage and external threats.

These safety features make liquid immersed transformers the preferred option for high-risk environments, such as power plants, mining operations, and areas prone to electrical surges or weather-related stress.

Liquid Immersed Transformers and Economic Costs

When comparing the total cost of ownership (TCO) of liquid immersed transformers to dry-type alternatives, the former consistently prove to be more cost-effective in the long run.

Initial Cost Savings:

Liquid immersed transformers typically have a lower initial purchase price due to their simpler design. They do not require external cooling systems or protective enclosures, which reduces both manufacturing and installation costs. This makes them an attractive option for large-scale projects where cost-efficiency is a primary concern.

Long-Term Savings:

The reduced maintenance requirements of liquid immersed transformers further contribute to their long-term economic advantages. Their durability and low operating costs result in fewer repairs and interventions, making them a sound investment for businesses looking to minimize operational expenses.

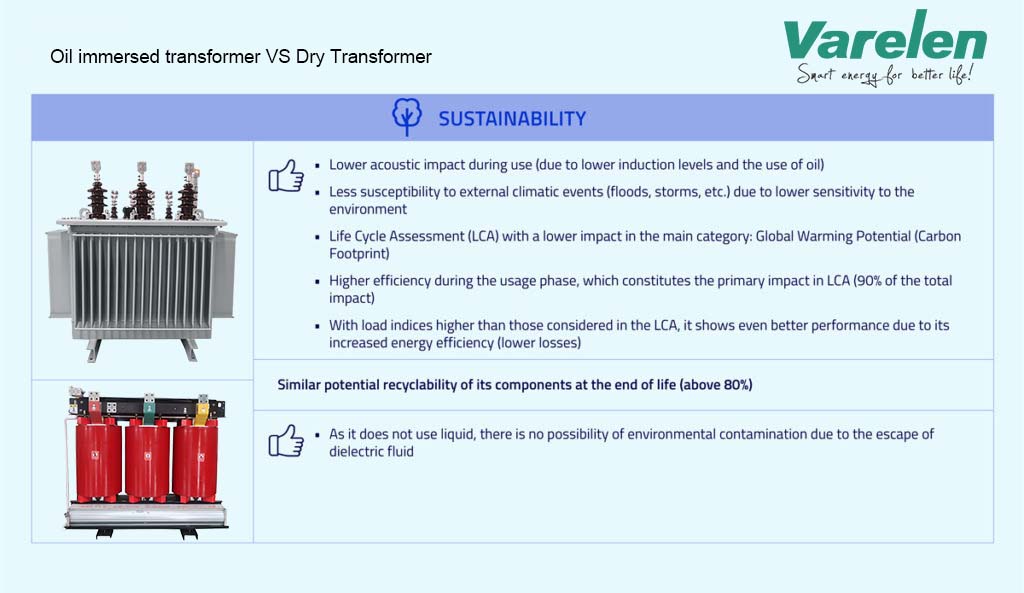

Liquid Immersed Transformers and Sustainability Criteria

Sustainability has become a critical consideration in the design and operation of electrical infrastructure. Liquid immersed transformers, with their energy efficiency and environmental benefits, are a key component of a more sustainable power network.

Environmental Benefits:

1. Lower Carbon Footprint: The Life Cycle Assessment (LCA) of liquid immersed transformers indicates a lower global warming potential compared to other transformer types. This makes them a more eco-friendly choice for energy providers and industries striving to reduce their environmental impact.
2. Energy Efficiency: These transformers are highly efficient during their operational life, which contributes to reduced energy consumption and lower greenhouse gas emissions.
3. Resilience to Climate Change: Liquid immersed transformers are better able to withstand extreme weather conditions, such as floods or storms, thanks to their sealed, oil-insulated design. This resilience makes them particularly suited for regions vulnerable to natural disasters.

Conclusion

Liquid immersed transformers are a critical technology for modern power systems, offering a blend of safety, efficiency, and environmental sustainability. With their superior electrical insulation, thermal management, and ease of maintenance, these transformers provide a cost-effective and reliable solution for a wide range of industrial and commercial applications.

From a technical standpoint, the dielectric liquid plays a pivotal role in ensuring the transformers' smooth operation and longevity. When considering installation and maintenance costs, liquid immersed transformers offer clear economic advantages, with lower initial costs and reduced long-term maintenance expenses. Moreover, their robust safety features make them ideal for high-risk environments.

Finally, liquid immersed transformers are a more sustainable choice, with a lower environmental impact and higher efficiency compared to other transformer types. Whether you're operating a large-scale power grid, an industrial site, or a renewable energy project, liquid immersed transformers provide a smart, reliable, and eco-friendly solution for your electrical needs.
