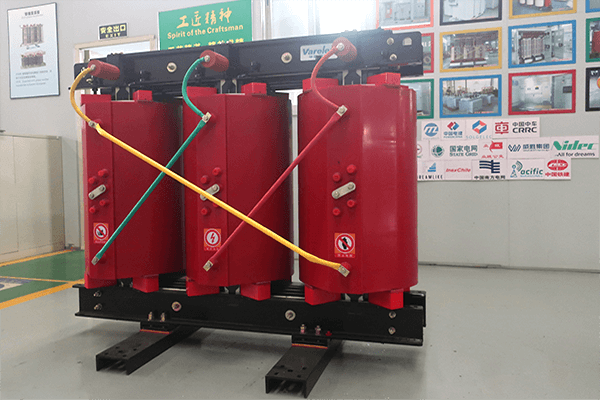

What is dry type transformers?

DRY-TYPE TRANSFORMERS also called cast resin transformer, also known as the SolidCast Transformer, stands as a pinnacle of efficiency and safety in power distribution. Unlike traditional liquid-filled transformers, the Power-Safe model boasts a solid design, free from any rotating parts. This innovative construction ensures maximum utilization of eco-friendly insulation systems for optimal performance.

Dry type transformers Applications

Varelen design and manufacturing dry type transformer is suitable for power transmission and distribution system, hotel, restaurant, hospitals, shopping malls, bank buildings ,stadiums, airports, stations especially heavy load centers and places with special fire protection requirements.

Dry type transformers offer numerous advantages, making them a preferred choice in various applications. Let's delve into their key benefits:

three phase dry type transformers advantages

1. Self-Extinguishing and Low Fire Hazard

2. Zero Oil Usage

3. Eco-Friendly and Safe Operation

4. Low-Cost Installation and Lower Load Losses

5. Low Maintenance

6. High Efficiency

7.  Enhanced Safety

8. Compact Design

What is the dry type transformer Construction and features

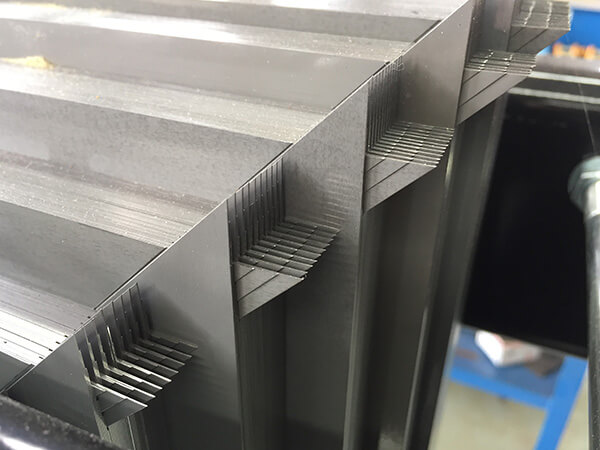

1. The three-limb iron core is made of oblique cut Grain-oriented, low-loss, seven-step silicon steel laminations insulated on both sides, guaranteeing low losses and low noise and these values are even improved by laser treatment. It is protected on the surface with a flash-proof varnish in order to prevent the sheet from corroding and to reduce the noise.

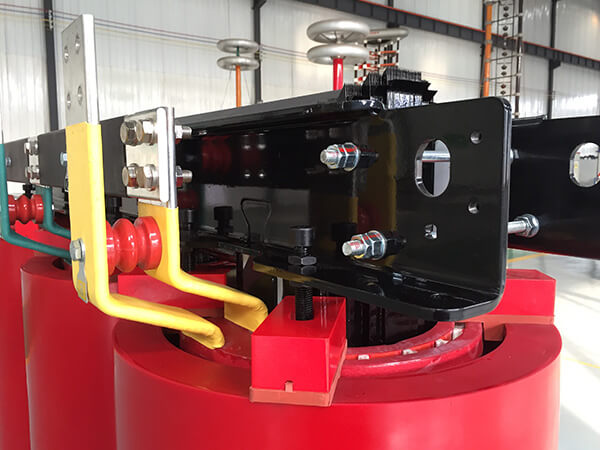

2. Clamping frame: it adopts CNC cutting, bending and one punch forming processes, the hole’s size is accurate and the appearancelooks delicate
3.

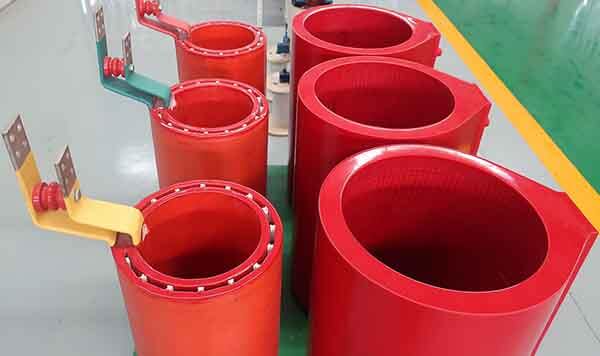

4. TheTransformer winding generally consists of aluminum or copperfoils isolated to increase short-circuit withstanding capability The HV winding adopts an aluminum or copper coil insulated by the F or H class insulation system as the conductor casted in vacuum
5. In order to avoid the fire and pollution, Varelen practicesstrict exclusive casting system of F(155℃)or H(180℃). After the winding process is finished, the windings will be put in the mould, injected the epoxy resin and casted in the cast resin equipment.
6. Insulation made of resin makes the transformer extensively maintenance-free, moisture-proof and suitable for dust-proof, fire-resistant and self-extinguishing.
7. High voltage tap to adapt respective network conditions.

How does it work?

Unlike its liquid-filled counterparts, which rely on substances like oil for cooling and insulation, the Power-Safe Dry Type Transformer operates through voltage alteration. This means that instead of cooling liquid, it leverages airflow to maintain optimal operating temperatures. Simply place the transformer in a well-ventilated area, and let the coils cool effortlessly.

Varelen dry type transformer is the best choice for specific markets where safety or ecology are main concerns.
