specification for order pad mounted transformer

Pad-mounted transformers are pivotal components in modern electrical distribution systems. They efficiently manage voltage levels to ensure the seamless delivery of electricity from the grid to residential, commercial, and industrial end-users. Selecting the right transformer specifications is crucial for optimizing performance, safety, and longevity. This article delves into the essential specifications to consider when ordering a pad-mounted transformer, offering valuable insights for electrical engineers and procurement specialists alike.

UNDERSTANDING PAD-MOUNTED TRANSFORMERS

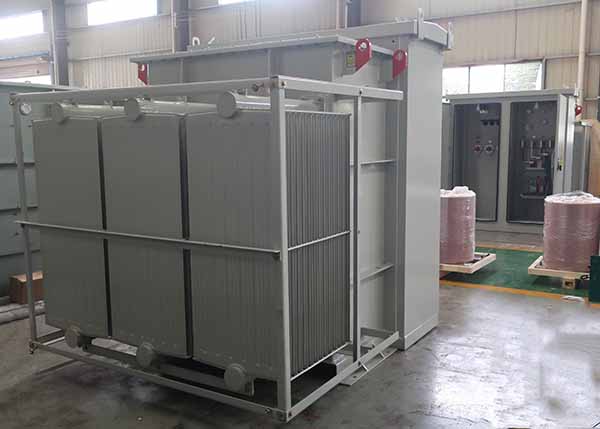

three phase pad-mounted transformer is an electrical device designed for installation at ground level on a concrete pad. Enclosed in a locked, tamper-resistant steel cabinet, it provides safety for public areas and protection from environmental factors. These transformers step down high utility distribution voltages to levels suitable for end-user applications, making them integral to residential, commercial, and industrial power distribution.

Common Application Uses:

• Residential Areas: Supply power to housing developments by converting high voltage to household levels.
• Commercial Complexes: Serve shopping centers and office buildings, meeting diverse business power needs.
• Industrial Parks: Provide power to industrial zones with multiple small industries.
• Public Facilities: Supply power to schools, hospitals, and parks.

Typical Installation Locations:

• Near Buildings: Positioned at a safe distance to comply with safety regulations.
• Sidewalks/Roadside: Found in residential and commercial areas, securely enclosed.
• Green Spaces: Located in public green spaces or utility easements for easy access by utility personnel.
• Industrial Zones: Strategically placed to efficiently distribute power within the zone.

TYPES OF PAD-MOUNTED TRANSFORMERS

Compartmental Type: Compartmental type pad-mounted transformers have separate compartments for different components, enhancing safety and accessibility. The primary compartment houses high-voltage connections, while the secondary compartment contains low-voltage connections. The transformer core and coil assembly are enclosed in a tank, protecting them from external elements. typically contains load break switches or fuses for protection and isolation. Utility personnel are most likely to access the primary compartment for maintenance and repairs.

Non-Compartmental Type: Non-compartmental type pad-mounted transformers house all components within a single secure enclosure. This unified design includes high-voltage and low-voltage connections and the transformer assembly. While offering a compact solution, proper safety measures are essential due to the lack of separate compartments.

ESSENTIAL Pad Mounted Ttansformer SPECIFICATIONS

1. Capacity (kVA):

• Determines the maximum power the transformer can handle.
• Ensures the transformer meets power demands without overloading.

2. Voltage Ratings:

• Primary voltage: Level at which the transformer receives power.

• Secondary voltage: Level at which the transformer delivers power to the load.
• Correct voltage ratings are crucial for compatibility with supply and load.

3. Phase:

• Single-phase: Suitable for residential and light commercial applications.
• Three-phase: Used for commercial and industrial applications with higher power needs.
• Correct phase selection ensures effective power supply.

4. Frequency:

• Measured in Hertz (Hz), typically 50 Hz or 60 Hz.
• Must match the supply frequency to ensure operational efficiency and longevity.

5. Temperature Rise:

• Indicates the increase in temperature of the transformer’s windings above ambient temperature under full-load conditions.
• Proper management avoids insulation degradation and extends operational life.

6. Insulation Level:

• Represents the transformer’s ability to withstand voltage stresses.
• Essential for protection from overvoltages and ensuring reliable operation.

7. Taps:

• Adjustable connections on the transformer windings for adjusting the voltage ratio.
• Crucial for compensating voltage variations and maintaining desired output voltage.

8. Impedance:

• Measured in percentage; represents the transformer’s resistance to current flow.
• Important for managing fault currents, load sharing in parallel operations, and minimizing voltage drop.

  Once know your transformer specifications, you’ll be to getting the right pad mounted transformer.

CONCLUSION

Choosing the right specifications for a pad-mounted transformer is pivotal for project success and equipment longevity. At Varelen Transformers, our factory provide high-quality, tailor-made transformer solutions to meet your exact needs. Our team of experts ensures you receive a transformer that aligns perfectly with your specifications, guaranteeing optimal performance and reliability. Trust Varelen Transformers to power your projects with precision and expertise.
