Cast Resin dry-type transformer is a type of transformer that uses air as the cooling medium instead of liquid coolants like oil. Unlike oil-filled transformers, dry-type transformers do not require a liquid coolant, making them safer and more environmentally friendly. They are widely used in applications where fire safety, low maintenance, and space efficiency are critical.

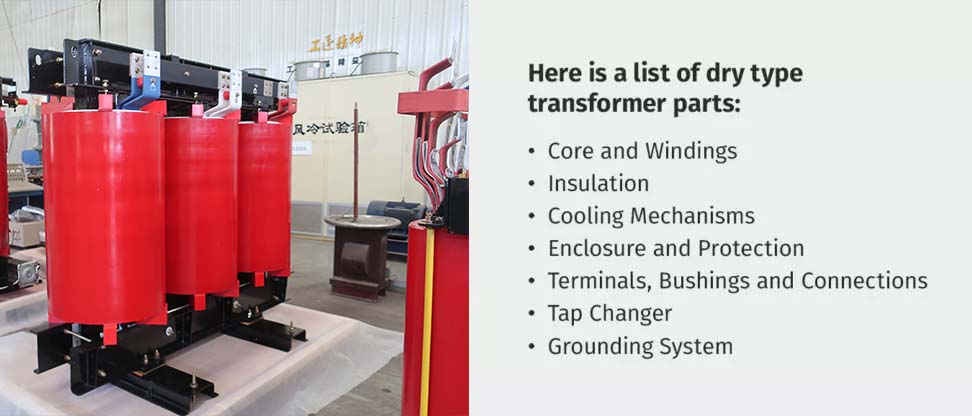

To understand how dry-type transformers work, it’s important to familiarize yourself with their main components:
1. Core
The core is made of laminated silicon steel sheets, which provide a low-reluctance path for magnetic flux. It minimizes energy losses and ensures efficient energy transfer between the primary and secondary windings.
2.Windings
Dry-type transformers have two sets of windings: the primary winding (connected to the input power source) and the secondary winding (connected to the load). These windings are typically made of copper or aluminum and are insulated with materials like epoxy resin or Nomex.
3. Insulation System
The insulation system ensures electrical isolation between the windings and the core. Dry-type transformers use solid insulation materials such as epoxy resin, polyester, or varnish, which are highly resistant to heat and moisture.
4. Enclosure
The enclosure protects the transformer from environmental factors like dust, moisture, and physical damage. It is usually made of metal (steel or aluminum) and may include ventilation openings for cooling.
5. Cooling System
Dry-type transformers rely on natural air circulation or forced air (using fans) for cooling. Ventilation ducts or fins are often incorporated into the design to enhance heat dissipation.
6. Terminals and Bushings
Terminals provide connection points for input and output cables, while bushings are insulating devices that allow electrical connections to pass through the enclosure safely.
7. Tap Changer (Optional)
Some dry-type transformers include a tap changer, which allows for adjustments to the output voltage. Tap changers can be manual or automatic, depending on the application.
8. Temperature Monitoring and Protection Devices
Temperature sensors (e.g., thermocouples or RTDs) monitor the transformer’s operating temperature, while over-temperature protection devices (e.g., thermal switches) can trigger alarms or shut down the transformer in case of overheating.
9. Mounting Frame or Base
The mounting frame provides structural support and ensures the transformer is securely installed. It may also include vibration dampers to reduce noise and mechanical stress.
10. Control and Monitoring Panel (Optional)
Advanced dry-type transformers may include a control panel for monitoring parameters like voltage, current, temperature, and fault conditions.

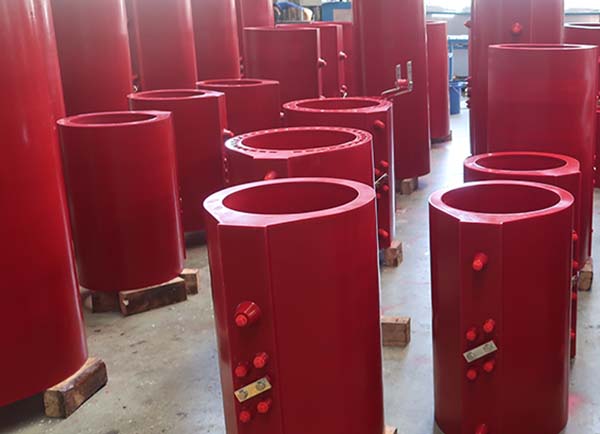

Cast Resin Dry Type Transformers are fabricated with an epoxy resin. The windings are completely embedded under vacuum conditions. This casting method makes it possible to assure void-free epoxypenetration of both the inner layer and turn to turn insulation.
Dry-type transformers offer several benefits that make them a preferred choice in many applications:
Fire Safety: Since they do not use flammable liquids like oil, dry-type transformers are inherently safer and reduce the risk of fire hazards.
Environmentally Friendly: They eliminate the risk of oil leaks, making them more eco-friendly and easier to dispose of.
Low Maintenance: Dry-type transformers require minimal maintenance compared to oil-filled transformers.
Compact Design: Their compact and lightweight design makes them ideal for space-constrained installations.
Versatility: They can be used both indoors and outdoors, making them suitable for a wide range of applications.

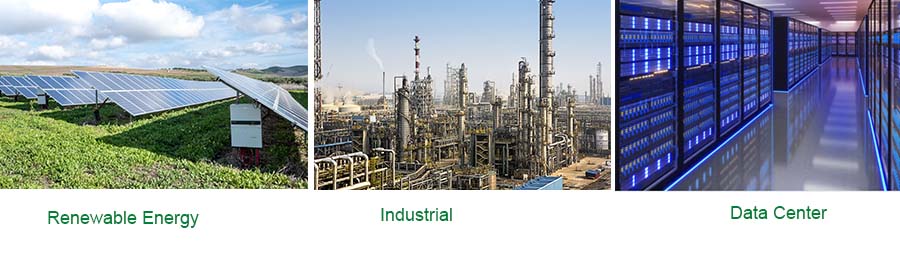

Dry-type transformers are used in various industries and settings, including:
Commercial Buildings: Offices, shopping malls, and hotels.
Hospitals and Healthcare Facilities: Where safety and reliability are critical.
Data Centers: To ensure uninterrupted power supply and efficient energy distribution.
Industrial Facilities: For powering heavy machinery and equipment.
Renewable Energy Systems: In solar and wind power installations.
Dry-type transformers are an essential component of modern electrical systems, offering a safe, reliable, and environmentally friendly solution for power distribution. With their robust design, low maintenance requirements, and versatility, they are well-suited for a wide range of applications. Whether you’re managing a commercial building, a healthcare facility, or an industrial plant, dry-type transformers provide the performance and safety you need.
If you’re considering a dry-type transformer for your next project, consult with a trusted supplier to ensure you select the right model for your specific requirements. Investing in a high-quality dry-type transformer can enhance the efficiency and reliability of your electrical system while ensuring long-term safety and sustainability.
