Dry-type transformers are a critical component in modern electrical systems, offering a safe, efficient, and eco-friendly alternative to traditional oil-filled transformers. One of the key elements that ensure their performance and longevity is the enclosure.

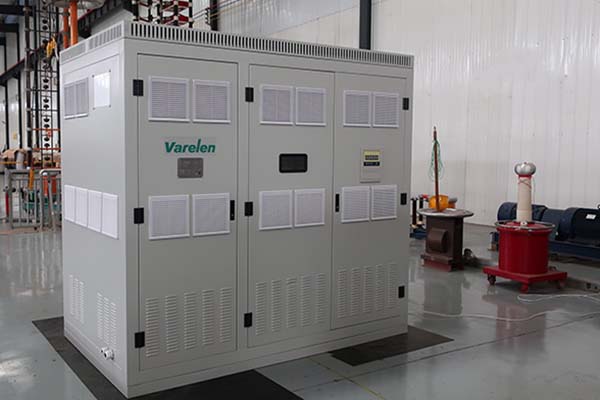

The enclosure of a dry-type transformer is the protective housing that surrounds the transformer’s core and windings. Unlike oil-filled transformers, dry-type transformers use air or resin for insulation, making their enclosures a vital part of their design. These enclosures are typically made from durable materials like steel, aluminum, or stainless steel, and they come in various configurations depending on the transformer’s application and environment.
NEMA standards are commonly used in North America and provide a more detailed classification of enclosure types. Here are some of the most relevant NEMA types for dry-type transformers:
NEMA 1: Protects against dust and light contact (indoor use).
NEMA 3R: Protects against rain, sleet, and external ice formation (outdoor use).
NEMA 4: Protects against water ingress from hose-directed water and windblown dust (outdoor use).
NEMA 4X: Same as NEMA 4, but with additional corrosion resistance (ideal for coastal or chemical environments).
NEMA 12: Protects against dust, dirt, and dripping non-corrosive liquids (industrial indoor use).
Dry-type transformers are often installed in harsh environments, such as industrial facilities, solar farms, or outdoor power stations. The enclosure acts as a shield, protecting the transformer from:
Dust and Dirt: Prevents contaminants from entering and affecting the transformer’s performance.
Moisture and Humidity: Keeps the internal components dry, reducing the risk of corrosion or electrical faults.
Extreme Temperatures: Provides insulation against temperature fluctuations, ensuring stable operation.
Safety is a top priority in electrical systems, and the enclosure plays a crucial role in ensuring it.
Fire Resistance: Dry-type transformers are inherently safer than oil-filled ones, but the enclosure adds an extra layer of fire protection by containing any potential internal faults.
Electrical Insulation: The enclosure prevents accidental contact with live parts, reducing the risk of electric shock.
Noise Reduction: Transformers can produce humming noises during operation. The enclosure helps dampen this noise, making it suitable for indoor installations near sensitive areas.
Transformers are often subjected to physical stress during transportation, installation, and operation. The enclosure provides:
Structural Support: Reinforces the transformer’s core and windings, preventing damage from vibrations or impacts.
Durability: Made from robust materials, the enclosure ensures the transformer can withstand harsh conditions and last for decades.
Dry-type transformer enclosures are designed to meet strict industry standards and regulations, such as IEC, IEEE, and NEMA. These standards ensure that the transformer is safe, reliable, and suitable for its intended application.
Enclosures can be tailored to meet the unique needs of different industries. For example:
Solar Farms: Enclosures with enhanced UV resistance and weatherproofing for outdoor installations.
Industrial Facilities: Explosion-proof or corrosion-resistant enclosures for hazardous environments.
Indoor Installations: Aesthetically designed enclosures that blend with the surroundings while providing adequate ventilation.
In solar farm solutions, dry-type transformers are often exposed to extreme weather conditions, dust, and high temperatures. The enclosure ensures that the transformer operates efficiently and reliably, even in these challenging environments. Additionally, the eco-friendly design of dry-type transformers aligns perfectly with the sustainability goals of solar energy projects.
The enclosure of a dry-type transformer is far more than just a protective shell—it’s a critical component that ensures safety, durability, and optimal performance. Whether it’s shielding the transformer from environmental hazards, reducing noise, or complying with industry standards, the enclosure plays a vital role in the transformer’s overall functionality.
At Varelen, we specialize in designing and manufacturing high-quality dry-type transformers with robust enclosures tailored to your specific needs. Whether you’re working on a solar farm, industrial facility, or commercial project, our transformers are built to deliver reliable performance and long-term value.
