Wind energy systems rely on efficient electrical infrastructure to convert and transmit power reliably. Among the critical components in these systems are transformers, which step up or step down voltage for optimal transmission. While dry-type transformers are often used in wind power applications, liquid-immersed transformers offer distinct advantages that make them suitable for certain installations.
Transformers are essential in wind energy systems to ensure efficient voltage transformation. Wind turbines generate electricity at relatively low voltages, typically in the range of 600V to 1000V. For effective transmission over long distances, this voltage needs to be stepped up to medium or high voltage levels (e.g., 34.5 kV or higher). Liquid-immersed transformers are often used at various points in the wind farm infrastructure, including near the turbine itself or in centralized substations.
Liquid-immersed transformers offer several advantages that make them suitable for wind energy applications:
Higher Efficiency – Due to their liquid cooling medium, these transformers have superior heat dissipation, reducing core and winding losses.
Greater Power Capacity – They can handle higher power loads compared to dry-type transformers, making them ideal for large-scale wind farms.
Longevity and Reliability – The liquid medium protects internal components from excessive heat and environmental exposure, leading to an extended operational lifespan.
Improved Thermal Performance – The cooling properties of liquid insulation allow for better performance under high-load conditions, reducing thermal stress.
Compact Design – Liquid-immersed transformers require less space compared to their dry-type counterparts for the same power rating, making them suitable for high-density wind farms.
Different types of liquid-immersed transformers are utilized in wind energy applications, depending on their role in the system:

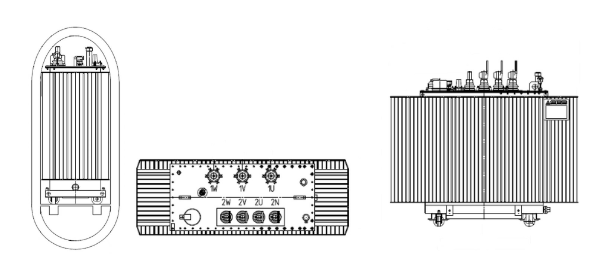

Pad-Mounted Transformers – Installed near wind turbines, these transformers step up the low-voltage output from the generator to medium voltage for collection systems.

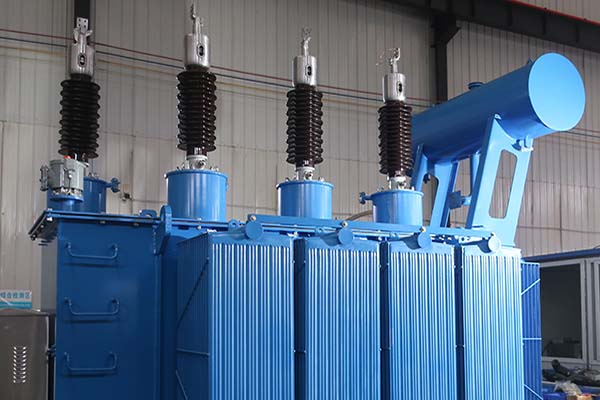

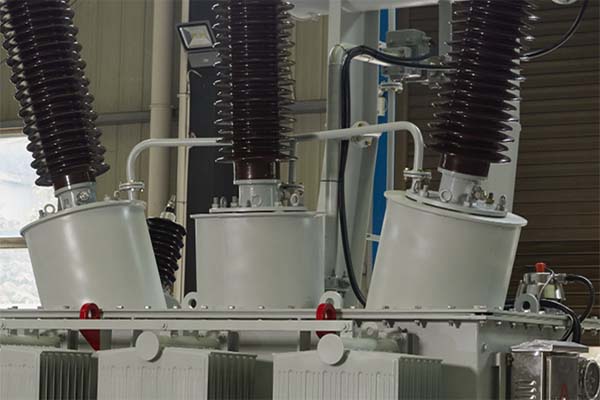

Substation Transformers – Located in wind farm substations, these units step up medium voltage to high voltage (e.g., 132 kV or higher) for grid transmission.
Collector Transformers – Used in larger wind farms to consolidate power from multiple turbines before final voltage transformation.
The choice of insulating liquid is crucial for the efficiency and sustainability of liquid-immersed transformers in wind energy systems. Common insulating fluids include:
Mineral Oil – The most widely used due to its cost-effectiveness and reliable performance.
Natural Esters (Biodegradable Fluids) – Eco-friendly options with improved fire resistance and biodegradability, ideal for environmentally sensitive locations.
Silicone Oil – Offers excellent thermal stability and fire resistance, suitable for offshore and high-risk areas.
When designing a transformer for wind turbine applications, several critical factors must be taken into account to ensure optimal performance and longevity.
Transformers supplying power to Wind Turbine Generator Step-Up (WTGSU) units must be engineered to handle the harmonic distortions and voltage spikes produced by the system. If not properly accounted for during the design phase, these electrical disturbances can lead to excessive stress on the insulation system, accelerating its degradation.
Unlike conventional distribution transformers, WTGSU transformers experience highly variable loading conditions. Their load cycles can change multiple times a day based on wind speed and turbine operation. Both the active components and the cooling system must be designed to accommodate these fluctuations effectively.
The transformer must be appropriately sized to manage the specific demands of wind energy applications, ensuring it can handle the unpredictable nature of wind power generation.
In the event of a cable fault, such as a single-line-to-ground or double-line-to-ground fault, the transformer must be capable of withstanding the resulting overvoltage conditions. Failure to do so could lead to excessive stress on the insulation system, potentially compromising the transformer's reliability.
Due to the nature of wind power generation, transformers in these systems must endure frequent switching operations. These occur as the turbine is turned on and off in response to wind speed variations, causing transient overvoltages. Special design solutions are required to protect the windings from these stresses.
To enhance fire safety and minimize environmental risks, oil-immersed transformers can be filled with synthetic or biodegradable ester fluids. Alternatively, dry-type cast resin transformers can be used as a safer option for installations requiring additional fire protection.
Liquid-immersed transformers play a vital role in modern wind energy systems by ensuring efficient voltage transformation and reliable power transmission. Their superior cooling capabilities, higher efficiency, and ability to handle large power loads make them an excellent choice for both onshore and offshore wind farms. By selecting the right transformer type and insulating fluid, wind energy operators can enhance performance, sustainability, and longevity, contributing to a more efficient renewable energy infrastructure.
