In modern power system, transformer is the core equipment of power transmission and distribution. Whether it is the parallel operation of the transformer or the load and no-load operation state, it directly affects the stability and efficiency of the power system. This article will give you a comprehensive analysis of the parallel operation conditions of transformers, load and no-load operation characteristics, to help you better understand the working principle of transformers and optimization methods.

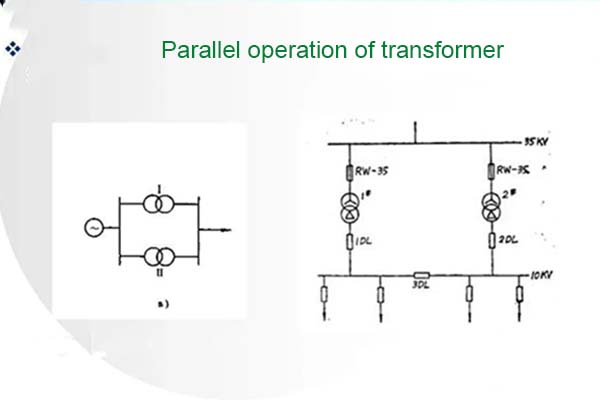

1. What is Parallel Operation of Transformers?
Parallel operation of transformers refers to connecting the primary and secondary sides of two or more transformers to the same busbar, jointly supplying power to the load. This method is widely used in scenarios requiring high reliability or large-capacity power supply.
2. Conditions for Parallel Operation
Same Voltage Level: The rated voltage of each transformer must be identical.
Same Connection Group: Ensure the output voltage phases of each transformer are consistent to avoid circulating currents.
Similar Short-Circuit Impedance: Large differences in short-circuit impedance can lead to uneven load distribution, affecting operational efficiency.
Same Phase Sequence: The phase sequence of each transformer must be confirmed before parallel operation.
3. Advantages of Parallel Operation
Improved Power Supply Reliability: If one transformer fails, others can continue to supply power, reducing the risk of power outages.
Flexible Capacity Adjustment: Adjust the number of operating transformers based on load demand for economical operation.
Reduced Losses: Deactivate some transformers during light loads to minimize no-load losses.
4. Precautions for Parallel Operation
Load Distribution: Differences in short-circuit impedance may cause uneven load distribution, so impedance matching is crucial.
Protection Configuration: Comprehensive protection devices must be installed to prevent fault escalation.
Operation Sequence: Ensure all conditions are met before closing the circuit for parallel operation.
1. No-Load Operation
Definition: The primary side of the transformer is connected to the power supply, while the secondary side is open-circuited, with no load current flowing.
Characteristics:
The no-load current is mainly used to establish the magnetic field and is relatively small.
No-load losses primarily consist of iron losses, including hysteresis and eddy current losses.
The power factor is low, and the current is mainly inductive.
2. Load Operation
Definition: The primary side of the transformer is connected to the power supply, and the secondary side is connected to a load, with load current flowing.
Characteristics:
The load current increases with the load.
Losses include iron losses and copper losses, with copper losses proportional to the square of the load current.
The power factor depends on the nature of the load, being lower for inductive loads and higher for resistive loads.
3. Differences Between Load and No-Load Operation
Current: No-load current is small, while load current increases with the load.
Losses: No-load operation mainly involves iron losses, while load operation includes both iron and copper losses.
Power Factor: No-load operation has a low power factor, while load operation depends on the load characteristics.
1. Rational Selection of Parallel Transformers
Choose transformers with similar short-circuit impedance to ensure even load distribution.
Regularly check parallel operation conditions to avoid operational anomalies due to parameter changes.
2. Reducing No-Load Losses
Deactivate some transformers during light or no-load conditions to minimize iron losses.
Use high-efficiency, energy-saving transformers to reduce no-load losses.
3. Economic Load Operation
Adjust the number of operating transformers based on load demand to avoid "overloading" scenarios.
Optimize load distribution to reduce copper losses and improve operational efficiency.
Parallel operation and load/no-load operation of transformers are critical aspects of power system design and maintenance. By rationally configuring parallel transformers, optimizing load distribution, and reducing no-load losses, the reliability and economic efficiency of power systems can be significantly enhanced. We hope this analysis provides practical insights to support efficient power system operation!
